Slim extruded aluminum
Precision-extruded profiles carry large insulated glass with the least frame, so the glass and the view sit at the center of the opening. Aluminum does not rot or swell, so panels and sashes keep their alignment.
Element Collection · Aluminum Door and Window SystemsWhen the opening
When the opening
is the feature.
Aluminum doors for the opening the house is designed around. Folding, swing, and interior doors, extruded from aluminum with a thermal break, glazed with insulated Low-E glass, and powder-coated. Doors ship prehung; your dealer quotes the rest.
Specified, quoted, and delivered by your SourcePoint dealer.
SPELM1401Illustrative product view. Configuration shown may vary.
Door types
Three door types, one Collection.
Pick the way the opening should move. Every type is extruded, thermally broken, glazed, and finished the same way.
Material
Extruded aluminum, thermally broken
door types and stock sizes
Folding doors72" × 80"72" × 96"96" × 80"96" × 96"108" × 80"108" × 96"120" × 80"120" × 96"144" × 80"144" × 96"
Swing doors32" × 80"32" × 96"36" × 80"36" × 96"48" × 80"60" × 80"60" × 92"60" × 96"64" × 80"64" × 96"72" × 80"72" × 96"
Interior doors36" × 80" or 96" single48" · 60" · 72" × 80" or 96" double
Glass
qualitiesInsulated Low-EtypesDouble tempered, argon
Finish
qualitiesPowder-coatedtypesMatte Black
White
White
The Collection
Open more of your world.
Some openings are the whole idea: the wall that folds away onto the terrace, the entry drawn as one sheet of glass, the window that reads as a frame around the view. The Element Collection is aluminum because aluminum carries the most glass with the least frame, so the opening stays the feature.
Every door is extruded from aluminum with a continuous thermal break between the outside face and the inside face, so the frame does not carry outdoor temperature into the room, and aluminum does not rot or swell, so panels keep their alignment. Doors are glazed with double tempered Low-E glass with argon, powder-coated, and arrive prehung with handles and multi-point locking fitted.
The range runs from folding walls in ten stock sizes to swing and interior doors, every one on the same thermally broken aluminum profile.
Who asks for it
- Builders of contemporary and transitional homes who need the wide opening the plan shows, delivered prehung and ready to set.
- Architects drawing modern, coastal, and indoor-outdoor projects where the sightline, the glass line, and the ratings all have to be right.
Built in
What every Element Collection door is built with.
Collection-level facts. Folding-door-only facts are marked.
A thermal break in every frame
A continuous non-conductive barrier separates the outside aluminum from the inside, reducing heat transfer through the frame and keeping the room-side surface closer to room temperature.
Insulated Low-E glass
Doors are glazed with double tempered Low-E glass with argon.
Folding walls that stack aside (Doors)
Folding doors stack to one or both sides on top and bottom rollers, in ten stock sizes from 72" to 144" wide, and arrive prehung. One unit into the rough opening.
Drainage, gaskets, and seals
Drainage paths, gaskets, and rubber strips at the opening help resist air and water intrusion.
Multi-point locking, concealed hardware
Doors close on a multi-point automatic lock that secures the leaf at several points, with concealed hardware and handles included.
Doors
Element Collection doors.
Every door in the Collection, by type. Configurations and handing are on each product spec sheet; folding-door stock sizes are below.

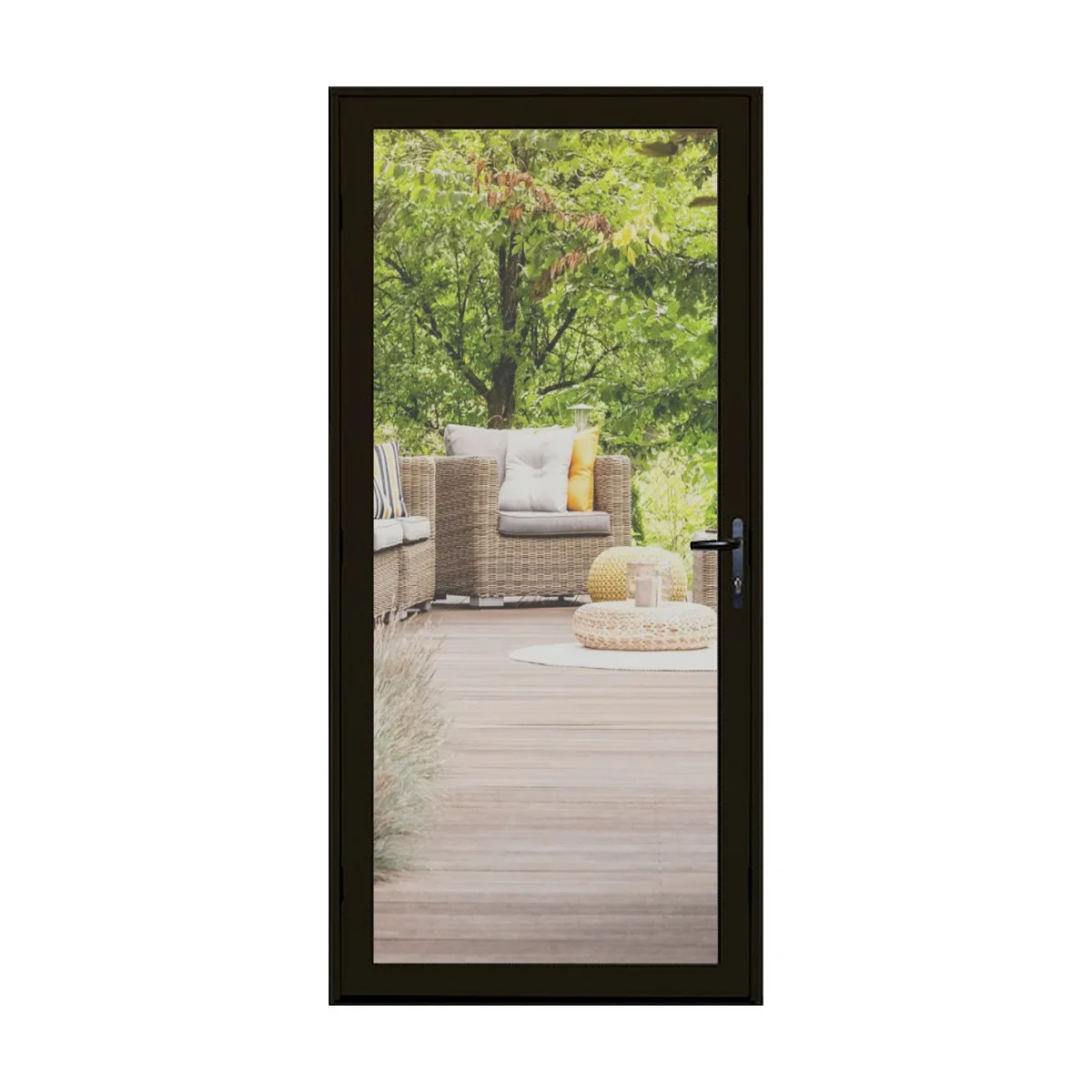

Swing doorElement Aluminum Full View Single Door
SPELM1101

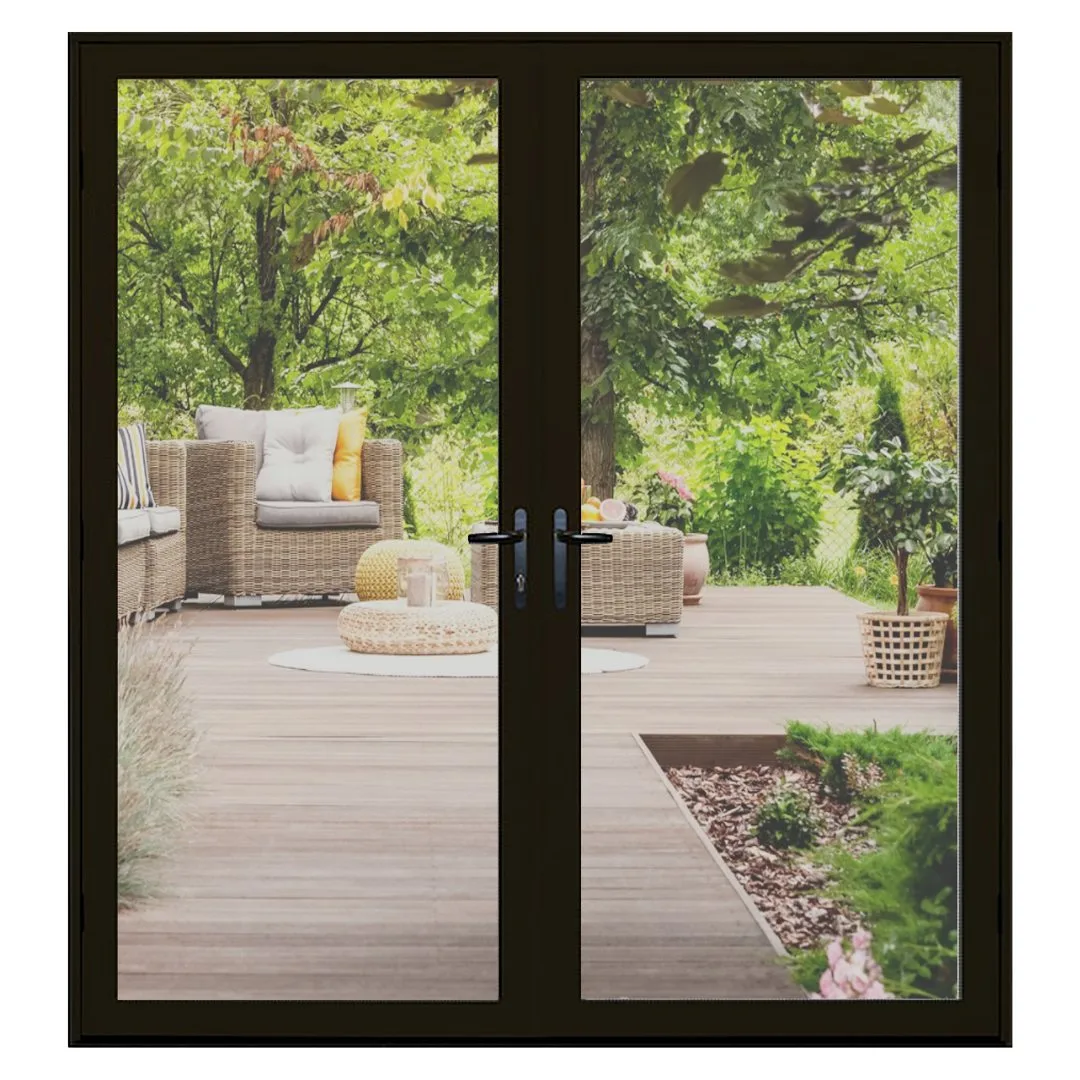

Swing doorElement Aluminum Full View Double Door
SPELM1201

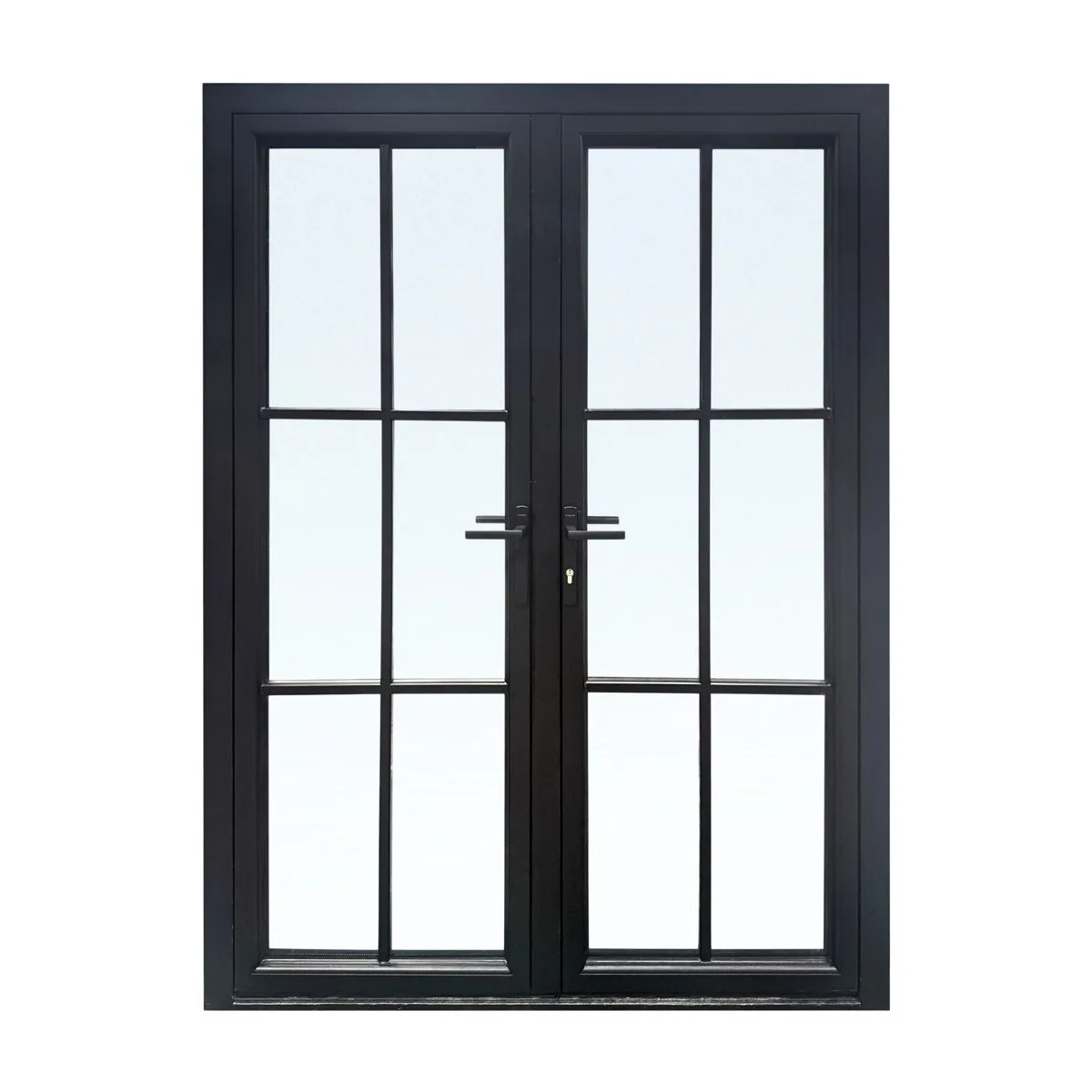

Swing doorElement Aluminum 6 Lite French SDL Double Door
SPELM1206Folding doorElement Aluminum Folding Door
SPELM1401

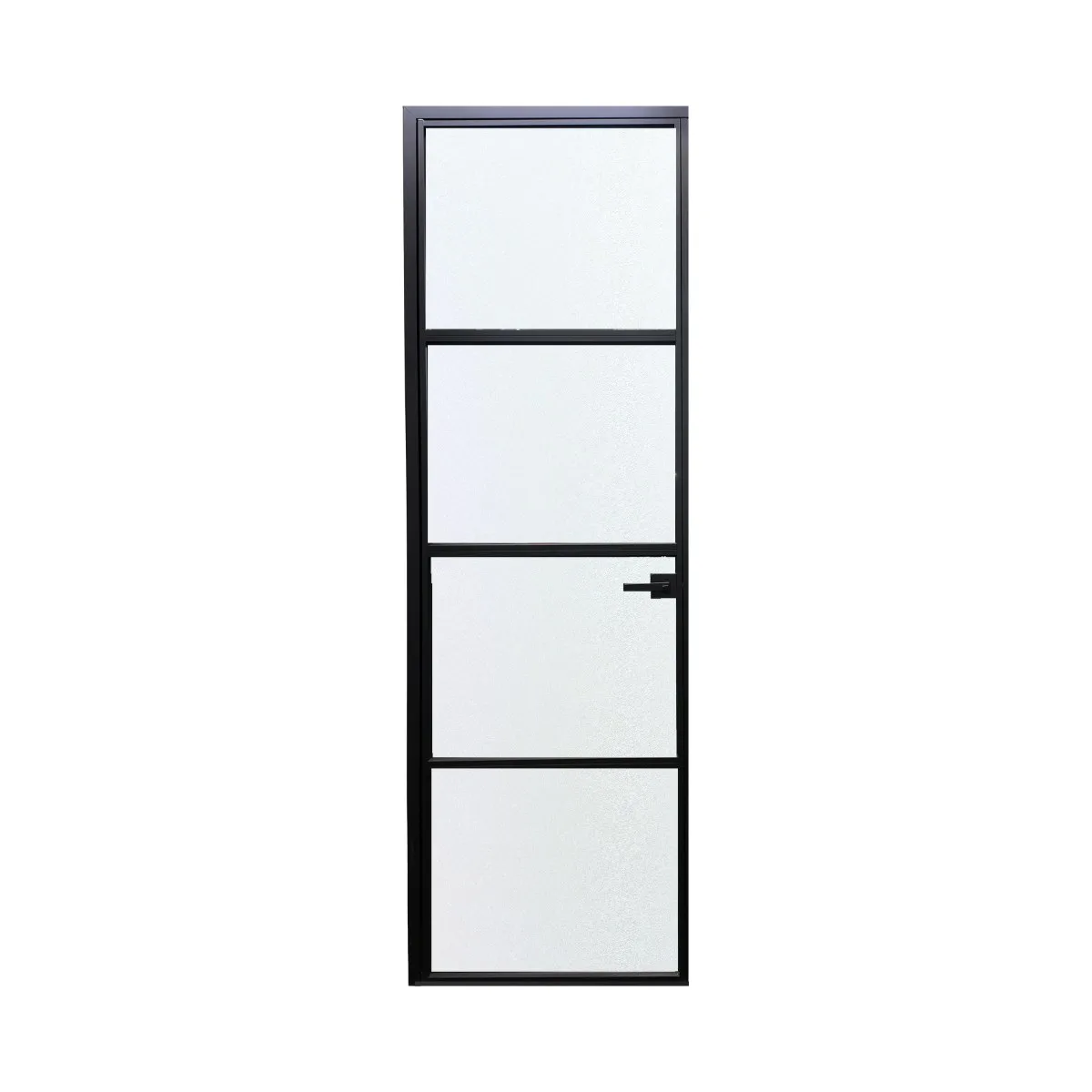

Interior doorElement Interior Aluminum 4 Lite Single Door
SPELM2104

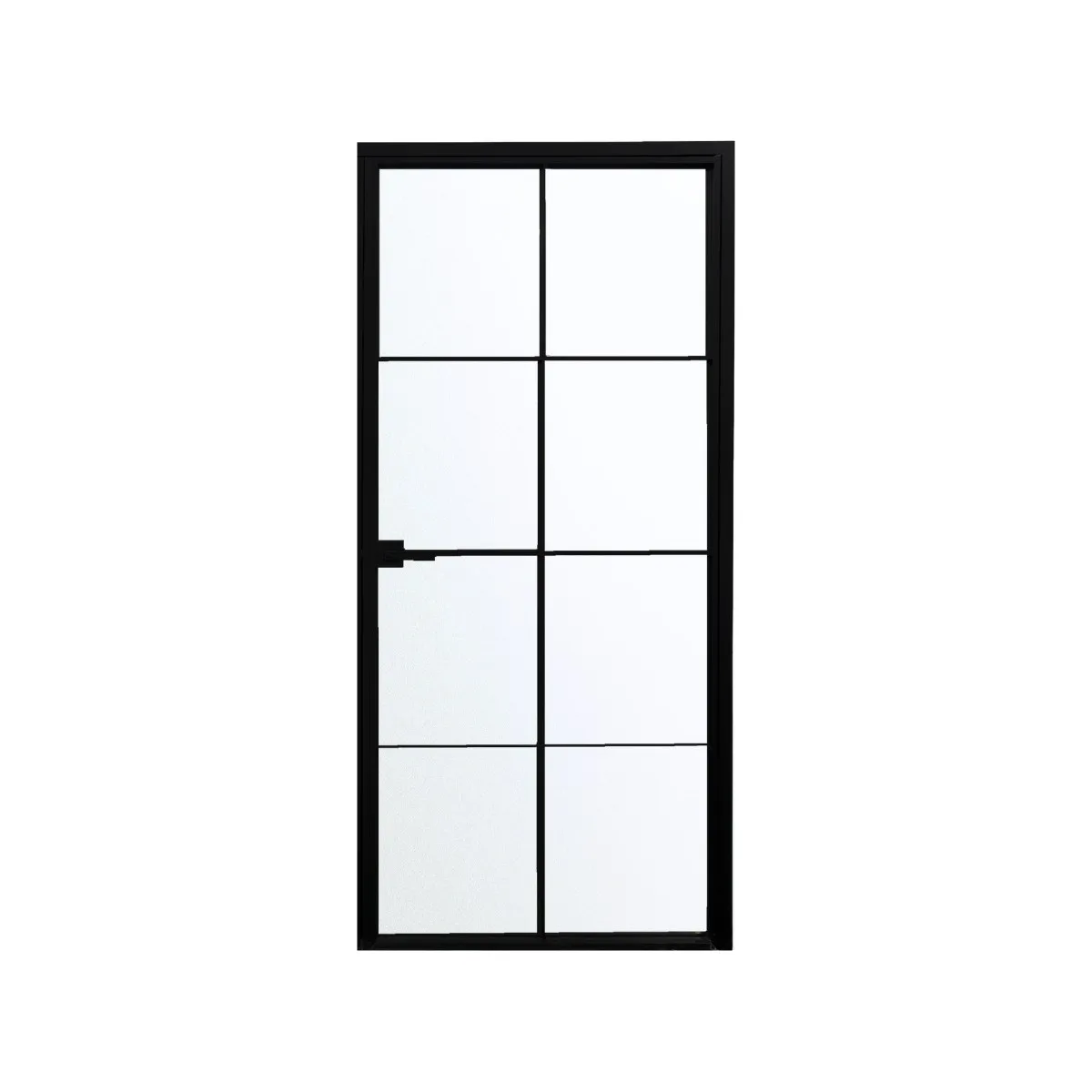

Interior doorElement Interior Aluminum 8 Lite Single Door
SPELM2108
Interior doorElement Interior Aluminum 4 Lite Double Door
SPELM2204

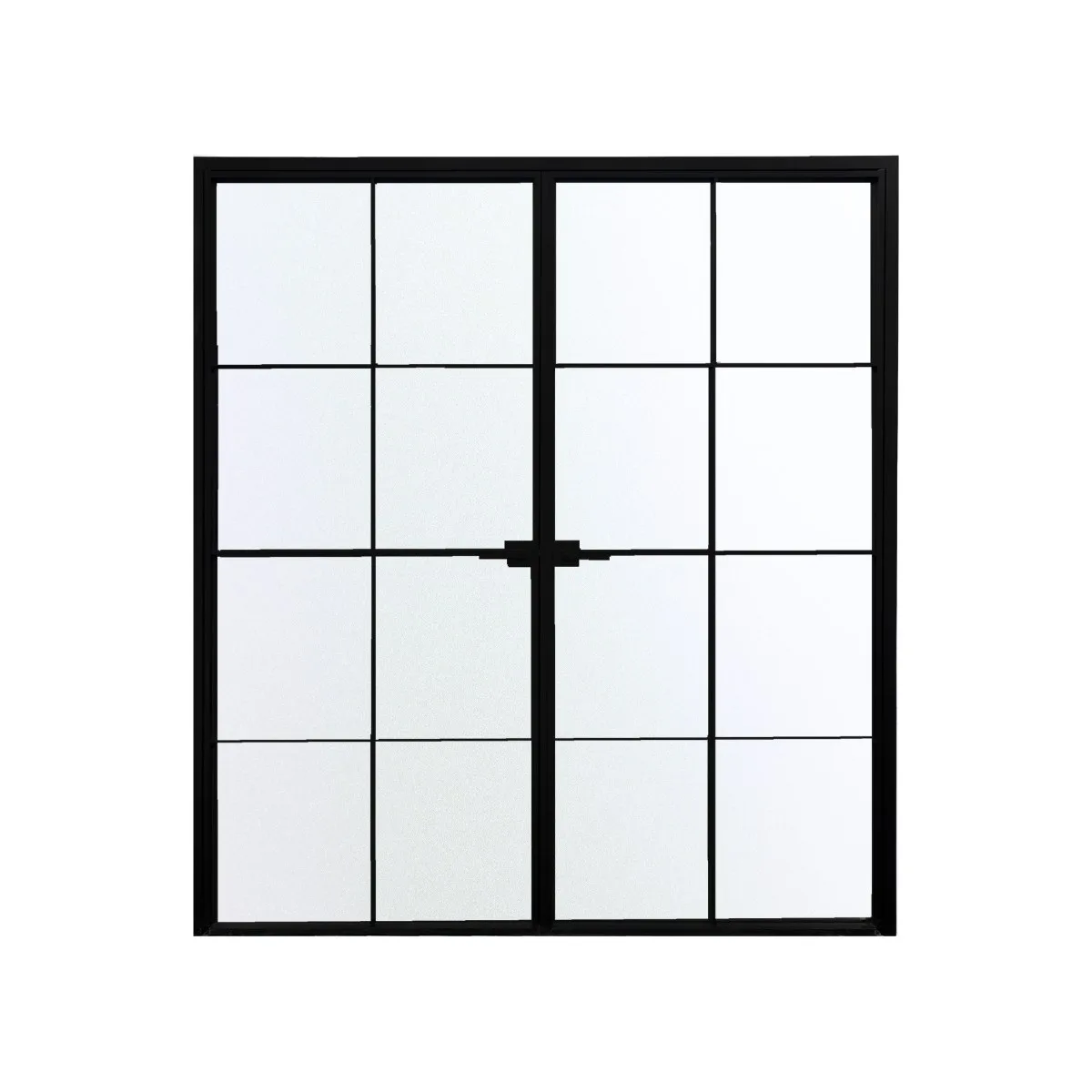

Interior doorElement Interior Aluminum 8 Lite Double Door
SPELM2208Fit the opening
Your space. Your configuration.
Stock size options in two heights. Special-order sizes and configurations on request.
All dimensions in inches.
| Width × height | Panels | Configurations | Operation |
|---|---|---|---|
| 72 × 80 | 2 panels | 2L / 2R | Folding to exterior |
| 72 × 96 | 2 panels | 2L / 2R | Folding to exterior |
| 96 × 80 | 3 panels | 3L / 3R | Folding to exterior |
| 96 × 96 | 3 panels | 3L / 3R | Folding to exterior |
| 108 × 80 | 3 panels | 3L / 3R | Folding to exterior |
| 108 × 96 | 3 panels | 3L / 3R | Folding to exterior |
| 120 × 80 | 4 panels | 1L3R / 1R3L | Folding to exterior |
| 120 × 96 | 4 panels | 1L3R / 1R3L | Folding to exterior |
| 144 × 80 | 4 panels | 1L3R / 1R3L | Folding to exterior |
| 144 × 96 | 4 panels | 1L3R / 1R3L | Folding to exterior |
Stock size listing does not indicate live inventory. Confirm configuration and availability with your dealer before ordering.
Pricing and availability come from your SourcePoint dealer, who confirms configuration, handing, and finish for each door.
Browse all CollectionsTechnical documentation
NFRC ratings and documents.
Every Element Collection window is certified in the NFRC Certified Products Directory. Expand a window for its glass packages and their certified ratings, or download the NFRC Certification Authorization Report for that CPD number.
87 Series · Tilt and turnSUU-M-10
| Glass package | Panes | Low-E | Spacer | Gas fill | Grids | U-factor | SHGC | VT | Condensation Resistance | Air Leakage | NFRC product number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6mm XDTB0170-Arg-6mm XDTB0170- Arg-6mm Planibel Clear | 3 | 0.059(2), 0.059(4) | TS-D | ARG(90/10) · ARG(90/10) | None | 0.24 | 0.21 | 0.31 | 64 | ≤ 0.3 | 00001-00001 |
Glass packages are listed as printed on the NFRC Certification Authorization Report.
Download the NFRC report (PDF)87 Series · CasementSUU-M-11
| Glass package | Panes | Low-E | Spacer | Gas fill | Grids | U-factor | SHGC | VT | Condensation Resistance | Air Leakage | NFRC product number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6|X179(2)-6|X179(4)-6|X189(5)- 13ARG90 | 3 | 0.048(2), 0.048(4), 0.18(5) | TS-D | ARG (90) · ARG (90) | None | 0.28 | 0.15 | 0.23 | 67 | ≤ 0.3 | 00001-00001 |
| 6|X179(2)-6|EG41(4)-6|X189(5)- 13ARG90 | 3 | 0.048(2), 0.103(4), 0.18(5) | TS-D | ARG (90) · ARG (90) | None | 0.28 | 0.13 | 0.14 | 67 | ≤ 0.3 | 00002-00001 |
| 6|EG41(2)-6|EG41(4)-6|X189(5)- 13ARG90 | 3 | 0.103(2), 0.103(4), 0.18(5) | TS-D | ARG (90) · ARG (90) | None | 0.28 | 0.10 | 0.08 | 67 | ≤ 0.3 | 00003-00001 |
| 6|X179(2)-6|X179(4)-6|EG41(5)- 13ARG90 | 3 | 0.048(2), 0.048(4), 0.103(5) | TS-D | ARG (90) · ARG (90) | None | 0.28 | 0.14 | 0.12 | 67 | ≤ 0.3 | 00004-00001 |
| 6|X179(2)-6|X189(4)-6|X189(5)- 13ARG90 | 3 | 0.048(2), 0.18(4), 0.18 (5) | TS-D | ARG (90) · ARG (90) | None | 0.28 | 0.16 | 0.25 | 67 | ≤ 0.3 | 00005-00001 |
| 5|X180(2)-5|X180(4)-5|CL-16/13ARG90 | 3 | 0.125(2), 0.125(4) | TS-D | ARG (90) · ARG (90) | None | 0.28 | 0.20 | 0.24 | 67 | ≤ 0.3 | 00006-00001 |
| 6|X179(2)-6|X179(3)-24ARG90 | 2 | 0.048(2), 0.048(3) | TS-D | ARG (90) | None | 0.33 | 0.17 | 0.26 | 62 | ≤ 0.3 | 00007-00001 |
| 6|X179(2)-6|X189(3)-24ARG90 | 2 | 0.048(2), 0.18(3) | TS-D | ARG (90) | None | 0.34 | 0.18 | 0.28 | 62 | ≤ 0.3 | 00008-00001 |
| 5|X180(2)-5|X180(3)-26ARG90 | 2 | 0.125(2), 0.125(3) | TS-D | ARG (90) | None | 0.34 | 0.25 | 0.27 | 62 | ≤ 0.3 | 00009-00001 |
| 5|X180(2)-5|CL-26ARG90 | 2 | 0.125(2) | TS-D | ARG (90) | None | 0.35 | 0.27 | 0.30 | 60 | ≤ 0.3 | 00010-00001 |
Glass packages are listed as printed on the NFRC Certification Authorization Report.
Download the NFRC report (PDF)113 Series · CasementSUU-M-12
| Glass package | Panes | Low-E | Spacer | Gas fill | Grids | U-factor | SHGC | VT | Condensation Resistance | Air Leakage | NFRC product number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 6|X179(2)-6|X179(4)-6|X189(5)- 11ARG90 | 3 | 0.048(2), 0.048(4), 0.18(5) | TS-D | ARG (90) · ARG (90) | None | 0.31 | 0.18 | 0.27 | 62 | ≤ 0.3 | 00001-00001 |
| 6|X179(2)-6|EG41(4)-6|X189(5)- 11ARG90 | 3 | 0.048(2), 0.103(4), 0.18(5) | TS-D | ARG (90) · ARG (90) | None | 0.31 | 0.15 | 0.16 | 62 | ≤ 0.3 | 00002-00001 |
| 6|EG41(2)-6|EG41(4)-6|X189(5)- 11ARG90 | 3 | 0.103(2), 0.103(4), 0.18(5) | TS-D | ARG (90) · ARG (90) | None | 0.32 | 0.12 | 0.10 | 62 | ≤ 0.3 | 00003-00001 |
| 6|X179(2)-6|X189(4)-6|X189(5)- 11ARG90 | 3 | 0.048(2), 0.18(4), 0.18 (5) | TS-D | ARG (90) · ARG (90) | None | 0.32 | 0.19 | 0.30 | 62 | ≤ 0.3 | 00004-00001 |
| 6|X179(2)-5|X180(4)-5|CL-11ARG90 | 3 | 0.048(2), 0.125(4) | TS-D | ARG (90) · ARG (90) | None | 0.32 | 0.19 | 0.29 | 62 | ≤ 0.3 | 00005-00001 |
| 6|X180(2)-5|X180(4)-5|CL-11ARG90 | 3 | 0.125(2), 0.125(4) | TS-D | ARG (90) · ARG (90) | None | 0.33 | 0.24 | 0.29 | 62 | ≤ 0.3 | 00006-00001 |
| 6|X179(2)-6|X179(3)-19ARG90 | 2 | 0.048(2), 0.048(3) | TS-D | ARG (90) | None | 0.38 | 0.21 | 0.31 | 61 | ≤ 0.3 | 00007-00001 |
| 6|X179(2)-6|X189(3)-19ARG90 | 2 | 0.048(2), 0.18(3) | TS-D | ARG (90) | None | 0.38 | 0.22 | 0.34 | 61 | ≤ 0.3 | 00008-00001 |
| 5|X180(2)-5|X180(3)-20ARG90 | 2 | 0.125(2), 0.125(3) | TS-D | ARG (90) | None | 0.38 | 0.27 | 0.32 | 60 | ≤ 0.3 | 00009-00001 |
| 5|X180(2)-5|CL-20ARG90 | 2 | 0.125(2) | TS-D | ARG (90) | None | 0.39 | 0.29 | 0.36 | 59 | ≤ 0.3 | 00010-00001 |
Glass packages are listed as printed on the NFRC Certification Authorization Report.
Download the NFRC report (PDF)Ratings are certified at the NFRC standard size for each operator type. Air Leakage is certified at ≤ 0.3 for every Element window. Tinted and reflective glass packages are listed with their certified figures.
Documents
Documents
Current documents for this Collection. Warranty claims go through your selling dealer.
Specify the Element Collection. Your dealer handles the rest.
Your SourcePoint dealer quotes the Element Collection alongside the rest of the range: six materials, one brand, one warranty, one call. Confirms size, configuration, and finish, and delivers the complete unit to the job.
